Product EN0485-2
- Description
- Brake disc
- Axe
- Front
- No. of Pieces
- 2
- Url
- https://catalogonuevo.energitbrakes.com/Producto/Details?idProducto=EN0485-2
- Weight (gr.)
- 13220
- R90 Homologation
-
90R-02C0074/1446

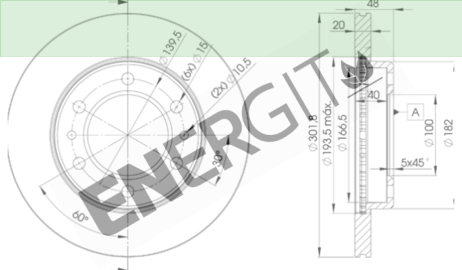

- Measures
- Ø301.8x20x48
-
Brake Disc Type:
Vented -
Minimum thickness [mm]:
19 -
Hole Arrangement/Number:
6 -
Bolt Hole Circle Ø [mm]:
139,5 -
Wheel Hub Diameter [mm]:
100
| Brand | OE Reference |
|---|---|
| TOYOTA | 43512-60040 |
| TOYOTA | 43512-60100 |
| TOYOTA | 43512-69015 |
| TOYOTA | 43512-69016 |
| Maker | Cross reference |
|---|---|
| ATE | 24.0120-0153.1 |
| BENDIX ANTIGUO | 561444B |
| BENDIX BRAKING-TMD | BDS2066 |
| BOSCH | 0 986 478 384 |
| DELPHI LOCKHEED | BG2591 |
| FERODO | DDF347 |
| ROAD HOUSE | 6408.10 |
| TRW | DF3035 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.4 TD 4WD (LN130) |
2L-T 2L-TE |
2 | 04/1989-11/1998 | 2446 | 66 | 90 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.2 (YN87_, YN87R) |
4Y |
1 | 03/1989-07/1994 | 2237 | 69 | 94 | 2 |
| 2.4 4WD (RN110, RN105, RN106) | 1 | 10/1988-08/1997 | 2367 | 75 | 102 | 3 | |
| 2.4 D 4WD (LN105_, LN108_, LN110_) |
2L |
2 | 09/1994-07/1997 | 2446 | 55 | 75 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 4.2 (FJ45_P) |
2F |
1 | 01/1975-04/1986 | 4230 | 89 | 121 | 3 |
| 3.4 D (BJ45_P, BJ45RP) |
3B |
2 | 08/1980-10/1984 | 3432 | 66 | 90 | 3 |
| 3.6 D (HJ45_P) |
H |
2 | 01/1975-07/1980 | 3576 | 66 | 90 | 3 |
| 4.0 D (HJ47_P, HJ47RP) |
2H |
2 | 08/1980-10/1984 | 3980 | 76 | 103 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 4.2 (FJ40, FJ43, FJ45, FJ55) |
2F |
1 | 01/1975-04/1986 | 4230 | 89 | 121 | 3 |
| 3.0 D 4WD (BJ42, BJ40RV) |
B |
2 | 03/1969-10/1984 | 2977 | 59 | 80 | 3 |
| 3.4 D (BJ42_V, BJ45_V, BJ46_, BJ42RV, BJ45RV) |
3B |
2 | 08/1980-10/1984 | 3432 | 66 | 90 | 3 |
| 3.6 D (HJ45_V) |
H |
2 | 04/1979-07/1980 | 3576 | 66 | 90 | 3 |
| 4.0 D (HJ47_V) |
2H |
2 | 08/1980-10/1984 | 3980 | 76 | 103 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 4.0 (FJ62_G, FJ62RG) |
3F-E |
1 | 08/1987-12/1992 | 3956 | 115 | 156 | 3 |
| 4.0 (FJ62_V) |
3F |
1 | 11/1984-08/1987 | 3956 | 101 | 137 | 3 |
| 4.2 (FJ60_V, FJ55_) |
2F |
1 | 10/1981-01/1988 | 4230 | 88 | 120 | 3 |
| 3.4 Diesel (BJ60, BJ61) |
3B |
2 | 10/1981-08/1987 | 3432 | 66 | 90 | 3 |
| 4.0 D (HJ60_) |
2H |
2 | 10/1981-01/1988 | 3980 | 77 | 105 | 3 |
| 4.0 Diesel (HJ60) |
2H |
2 | 01/1982-12/1985 | 3980 | 74 | 101 | 3 |
| 4.0 Diesel (HJ60) |
2H |
2 | 10/1982-12/1989 | 3980 | 76 | 103 | 3 |
| 4.0 Turbo-D (HJ61_V, HJ61) |
12HT |
2 | 10/1985-12/1989 | 3980 | 100 | 136 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.4 (RJ70_, RJ73_, RJ70RV) |
22R |
1 | 11/1984-05/1993 | 2367 | 81 | 110 | 3 |
| 2.4 (RJ70_, RJ73_) |
22R |
1 | 11/1984-05/1993 | 2367 | 77 | 105 | 3 |
| 2.4 (RJ70_V, RJ73_V) |
22RE |
1 | 12/1988-12/1996 | 2367 | 84 | 114 | 3 |
| 4.0 4x4 |
3F-E |
1 | 10/1989-12/1997 | 3956 | 115 | 156 | 3 |
| 4.0 4x4 (FJ70RV, FJ75RV) | 1 | 11/1984-10/1992 | 3956 | 110 | 150 | 3 | |
| 4.5 4x4 (FZJ75, FZJ75RV) |
1FZ-FE |
1 | 08/1992-11/1999 | 4477 | 158 | 215 | 3 |
| 4.5 MPFi 4x4 (FZJ78, FZJ70, FZJ78R, FZJ79) | 1 | 08/1992-06/2009 | 4477 | 165 | 224 | 3 | |
| 2.4 TD (LJ70) |
2L-T |
2 | 01/1990-05/1993 | 2446 | 66 | 90 | 3 |
| 3.4 D (BJ70_V, BJ73_) |
3B |
2 | 11/1984-12/1996 | 3432 | 70 | 95 | 3 |
| 3.4 TD (BJ71_V, BJ74) |
13BT |
2 | 10/1985-08/1986 | 3431 | 91 | 124 | 3 |
| 3.5 D 4x4 (PZJ70, PZJ73, PZJ70RV) | 2 | 01/1990-08/1991 | 3470 | 72 | 98 | 3 | |
| 3.5 D 4x4 (PZJ75, PZJ70) |
1PZ |
2 | 01/1990-12/1994 | 3470 | 85 | 116 | 3 |
| 4.0 D 4x4 (HJ75RV) | 2 | 11/1984-01/1990 | 3980 | 76 | 103 | 3 | |
| 4.0 TD 4x4 (RJ70_, LJ70_, BJ7_, HJ75_, FJ7_) |
12HT |
2 | 01/1997-08/2001 | 3980 | 100 | 136 | 3 |
| 4.2 D (HZJ76, HZJ78, HZJ70, HZJ73, HZJ75, HZJ79, HZJ77,... |
1H-Z |
2 | 01/1990- | 4164 | 96 | 131 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.4 TD (LJ70_, LJ70R) |
2L-T |
2 | 07/1990-05/1996 | 2446 | 66 | 90 | 3 |
| 3.5 D 4x4 (PZJ75_) |
1PZ |
2 | 01/1990-08/1992 | 3470 | 85 | 116 | 3 |
| 4.2 D (HZJ70, HZJ73) |
1H-Z |
2 | 01/1990-08/2001 | 4164 | 123 | 167 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 4.5 4x4 (FZJ75, FZJ75RP) | 1 | 08/1992-11/1999 | 4477 | 158 | 215 | 3 | |
| 4.5 MPFi 4x4 (FZJ79, FZJ79R) |
1FZ-FE |
1 | 11/1990-11/2007 | 4477 | 165 | 224 | 3 |
| 4.0 D 4x4 (HJ75, HJ75RP) |
2H |
2 | 11/1984-03/1990 | 3980 | 76 | 103 | 3 |
| 4.2 D 4x4 (HZJ7__V, HZJ75RP, HZJ79R) |
1H-Z |
2 | 01/1990-02/2007 | 4164 | 96 | 131 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 3.5 D |
1PZ |
2 | 01/1990-08/1992 | 3470 | 85 | 116 | 3 |
| 4.2 D (HZJ80, HZJ81) |
1H-Z |
2 | 01/1990-12/1997 | 4164 | 99 | 135 | 3 |
| 4.2 TD (HDJ80, HDJ81) |
1HD-T |
2 | 01/1990-12/1997 | 4164 | 123 | 167 | 3 |
| 4.2 TD (HDJ80) |
1HD-T |
2 | 08/1992-12/1997 | 4164 | 118 | 160 | 3 |
| 4.2 TD 24V (HDJ80_, HDJ80, HDJ81V) |
1HD-FT |
2 | 01/1995-12/1997 | 4164 | 125 | 170 | 3 |
