Product EN0639-2
- Description
- Brake disc
- Axe
- Rear
- No. of Pieces
- 2
- Url
- https://catalogonuevo.energitbrakes.com/Producto/Details?idProducto=EN0639-2
- Weight (gr.)
- 11860
- R90 Homologation
-
90R-02C0241/0031

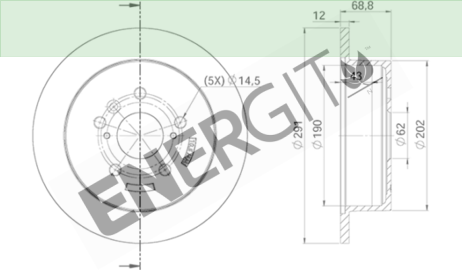

- Measures
- Ø291x12x68.8
-
Brake Disc Type:
solid -
Minimum thickness [mm]:
10.5 -
Hole Arrangement/Number:
5 -
Bolt Hole Circle Ø [mm]:
114.3 -
Wheel Hub Diameter [mm]:
62
| Brand | OE Reference |
|---|---|
| TOYOTA | 42431-08030 |
| TOYOTA | 42431-08040 |
| TOYOTA | 42431-28090 |
| TOYOTA | 42431-28091 |
| TOYOTA | 42431-28120 |
| TOYOTA | 42431-44030 |
| Maker | Cross reference |
|---|---|
| ATE | 24.0112-0164.1 |
| ATE | 412164 |
| BENDIX BRAKING-TMD | BDS2008 |
| BOSCH | 0 9686 479 200 |
| BREMBO | 08.A608.10 |
| BREMBO | 08.A608.11 |
| DELPHI LOCKHEED | BG3779 |
| FERODO | DDF10380 |
| GIRLING | 6045614 |
| HELLA-PAGID | 8DD 355 112-411 |
| MINTEX | MDC1511 |
| ROAD HOUSE | 61158.00 |
| SANLI | SL16442 |
| TEXTAR | 92144203 |
| TEXTAR | 98200 1442 0 1 |
| TRW | DF4561 |
| VALEO | 197018 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.4 (ANH10W) |
2AZ-FE |
1 | 09/2003-04/2008 | 2362 | 117 | 159 | 1 |
| 2.4 4WD (ANH15W) |
2AZ-FE |
1 | 09/2003-04/2008 | 2362 | 117 | 159 | 3 |
| 3.0 (MNH10) |
1MZ-FE |
1 | 04/2003-04/2008 | 2995 | 162 | 220 | 1 |
| 3.0 4WD (MNH15W) |
1MZ-FE |
1 | 04/2003-04/2008 | 2995 | 162 | 220 | 3 |
| 2.4 | 13 | 09/2003-04/2008 | 2362 | 96 | 131 | 1 | |
| 2.4 | 13 | 09/2003-04/2008 | 2362 | 96 | 131 | 3 | |
| 2.4 Hybrid (ATH10W) |
2AZ-FXE |
13 | 09/2003-04/2008 | 2362 | 117 | 159 | 1 |
| 2.4 Hybrid 4WD (ATH10W) |
2AZ-FXE |
13 | 09/2003-04/2008 | 2362 | 117 | 159 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 VVT-i (ACM20_, ACM20R) |
1AZ-FE |
1 | 08/2001-11/2009 | 1998 | 110 | 150 | 1 |
| 2.4 VVT-i (ACM21_, ACM21R) |
2AZ-FE |
1 | 05/2001-12/2011 | 2362 | 118 | 160 | 1 |
| 2.4 VVT-i (ACM21) |
2AZ-FE |
1 | 08/2001-08/2007 | 2362 | 115 | 156 | 1 |
| 2.4 VVT-i 4WD (ACM26_, ACM26W) |
2AZ-FE |
1 | 11/2003-08/2006 | 2362 | 115 | 156 | 3 |
| 2.4 VVT-i 4WD (ACM26_, ACM26W) |
2AZ-FE |
1 | 05/2001-12/2010 | 2362 | 118 | 160 | 3 |
| 2.0 D (CLM20_, CLM20R) |
1CD-FTV |
2 | 08/2001-08/2005 | 1995 | 85 | 116 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.8 VVTi (ZGM10W, ZGE25) |
2ZR-FAE |
1 | 04/2007-08/2014 | 1798 | 106 | 144 | 1 |
| 1.8 VVTi (ZNM10W) |
1ZZ-FE |
1 | 07/2004-08/2014 | 1794 | 97 | 132 | 1 |
| 1.8 VVTi (ZNM15W) |
1ZZ-FE |
1 | 07/2004-12/2010 | 1794 | 97 | 132 | 3 |
| 1.8 VVTi 4WD (ZGM15G) | 1 | 04/2007-08/2014 | 1798 | 98 | 133 | 3 | |
| 2.0 VVTi (ANM10G) |
1AZ-FSE |
1 | 07/2004-08/2009 | 1998 | 114 | 155 | 1 |
| 2.0 VVTi (ZGM11W) | 1 | 06/2012- | 1987 | 112 | 152 | 1 | |
| 2.0 VVTi (ZGM11W) |
3ZR-FAE |
1 | 09/2009-08/2014 | 1987 | 116 | 158 | 1 |
| 2.0 VVTi 4WD (ANM15G) |
1AZ-FSE |
1 | 07/2004-08/2014 | 1998 | 114 | 155 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 | 1 | 10/2000-08/2003 | 1998 | 94 | 128 | 1 | |
| 2.4 | 1 | 07/2002-12/2005 | 2362 | 96 | 131 | 1 | |
| 2.4 (ACR30) |
2AZ-FE |
1 | 02/2000-02/2006 | 2362 | 115 | 156 | 1 |
| 2.4 (ACR30) |
2AZ-FE |
1 | 02/2000-01/2006 | 2362 | 125 | 170 | 1 |
| 2.4 4WD (ACR30) |
2AZ-FE |
1 | 02/2000-01/2006 | 2362 | 125 | 170 | 3 |
| 3.0 (MCR30W) |
1MZ-FE |
1 | 08/2000-12/2005 | 2995 | 162 | 220 | 1 |
| 3.0 4WD (MCR40W) |
1MZ-FE |
1 | 02/2000-12/2005 | 2995 | 162 | 220 | 3 |
| 2.0 D-4D (CLR30_, CLR30R) |
1CD-FTV |
2 | 03/2001-01/2006 | 1995 | 85 | 116 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 3.3 (MCL20_, MCL23_, MCL20L, MCL23L) |
3MZ-FE |
1 | 01/2003-12/2006 | 3311 | 169 | 230 | 1 |
| 3.3 4WD (MCL25_, MCL25L) |
3MZ-FE |
1 | 01/2003-11/2009 | 3311 | 169 | 230 | 3 |
| 3.5 (GSL20_) |
2GR-FE |
1 | 10/2006-12/2010 | 3456 | 198 | 269 | 1 |
| 3.5 4WD (GSL25_) |
2GR-FE |
1 | 01/2007-03/2010 | 3456 | 198 | 269 | 3 |
